Found this list for intel
IHS Soldered To Die
Hyperthreading/Single Cores
-(S-775) Pentium 4 HT
-(S-775) Celeron D*
-(S-478) Celeron D*
-(S-478) Pentium 4 HT (Prescott Core)
-(S-478) Pentium 4 HT (Northwood "C" Core)*
Dual Cores
-(S-775) Pentium 4 Extreme Edition
-(S-775) Pentium D
-Pentium Dual Core E5200*
-Pentium Dual Core E5300*
-Pentium Dual Core E5400*
-Core 2 Duo E4700*
-Core 2 Duo E6300 (B2 stepping)
-Core 2 Duo E6320
-Core 2 Duo E6400 (B2 stepping)
-Core 2 Duo E6420
-Core 2 Duo E6540
-Core 2 Duo E6550
-Core 2 Duo E6600
-Core 2 Duo E6700
-Core 2 Duo E6750
-Core 2 Duo E6850
-Core 2 Duo Extreme X6800
-Core 2 Duo E8190
-Core 2 Duo E8200
-Core 2 Duo E8300
-Core 2 Duo E8400
-Core 2 Duo E8500
-Core 2 Duo E8600
-Xeon 3040 (L2 stepping)*
-Xeon 3040 (B2 stepping)
-Xeon 3050 (L2 stepping)*
-Xeon 3040 (B2 stepping)
-Xeon 3060
-Xeon 3070
-Xeon L3110
-Xeon E3110
-Xeon E3120
-Xeon E5502
Quad Cores
-Core 2 Quad Q6600
-Core 2 Quad Q6700
-Core 2 Quad Extreme QX6700
-Core 2 Quad Extreme QX6800
-Core 2 Quad Extreme QX6850
-Core 2 Quad Q8200
-Core 2 Quad Q8300
-Core 2 Quad Q8400
-Core 2 Quad Q8400S
-Core 2 Quad Q9300
-Core 2 Quad Q9400
-Core 2 Quad Q9400S
-Core 2 Quad Q9450
-Core 2 Quad Q9550
-Core 2 Quad Q9550S
-Core 2 Quad Q9650

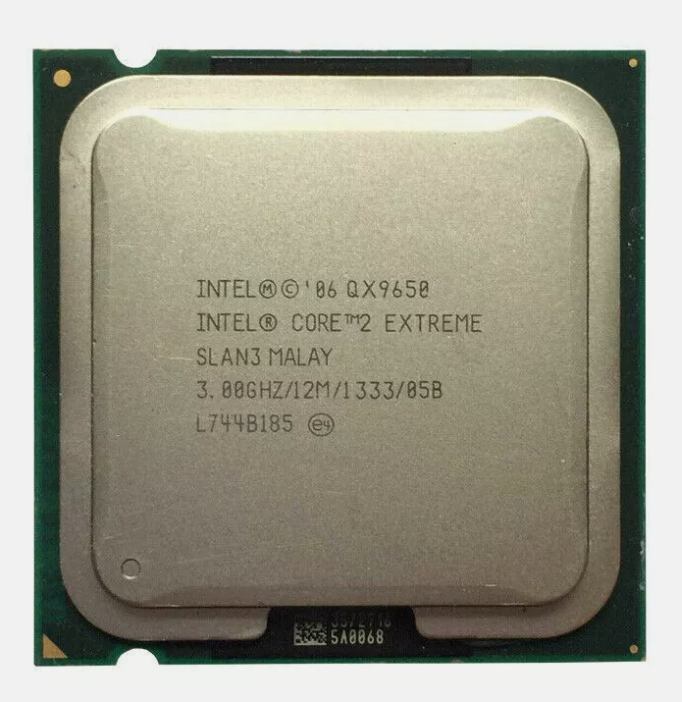

-Core 2 Quad Extreme QX9650
-Core 2 Quad Extreme QX9770
-Core 2 Quad Extreme QX9775
-Xeon X3210
-Xeon X3220
-Xeon X3230
-Xeon X3320
-Xeon X3350
-Xeon X3360
-Xeon L3360
-Xeon X3370
-Core i5 750
-Core i7 860
-Core i7 870
-Core i7 920
-Core i7 940
-Core i7 950
-Core i7 Extreme Edition 965
-Core i7 Extreme Edition 975
IHS Not Soldered To Die
Hyperthreading/Single Cores
-(S-478) Pentium 4 HT (Northwood "A" and "B" Core)*
-(S-478) Celeron
-(S-775) Celeron
-Celeron 420
-Celeron 430
-Celeron 440
Dual Cores
-Celeron Dual Core E1200
-Celeron Dual Core E1400
-Pentium Dual Core E2140
-Pentium Dual Core E2160
-Pentium Dual Core E2180
-Pentium Dual Core E2200
-Pentium Dual Core E2210
-Pentium Dual Core E2220
-Pentium Dual Core E6300
-Core 2 Duo E4300
-Core 2 Duo E4400
-Core 2 Duo E4500
-Core 2 Duo E4600
-Core 2 Duo E6300 (L2 stepping)*
-Core 2 Duo E6400 (L2 stepping)*
-Core 2 Duo E7200
-Core 2 Duo E7300
-Core 2 Duo E7400
-Core 2 Duo E7500
-Core 2 Duo E7600
No mention of
-Core i7 Extreme Edition 980X but I got 2 of them, so I can give it ago and let you known.
looks like the Prescott 3.4ghz socket 478 cpu for the win98/winxp retro build was a big mistake 1 soldered IHS, 2 reports of over heating.
ICS9LPRS916JGLF (ASUS P5K, P5QL Pro )
ICS9LPRS918BKL(ASUS P5K/3 Deluxe, P5E, P5Q Deluxe, P5Q-E, P6T Deluxe)
ICS9LPRS954BGLF (ASUS P5KPL-AM/P5G41T-M/CM5570/P5QL-VM-EPU/P7H55-M)
CY28551LFXC (ASUS P5B-Deluxe/COMMANDO, Intel G35EC)
ICS9LPRS552AGLF (ASUS P5K31-VM/P5B-E/P5B-Plus/P5B[Vanilla], GIGABYTE G33M-DS2R )
ICS9LPRS587AGLF (GIGABYTE GA-965P-DS3)
ICS9LPRS587EGLF (GIGABYTE P35-DS3)
ICS9LPRS906CGLF (MSI P35 Platinum)
ICS9LPRS509HGLF (DFI Infinity P965-S, Biostar TP35D2-A7, Foxconn P35A, ECS P35T-A V1.0)
ICS9LPRS918JKL (DFI LanParty DK X38/X48 T2R, UT X48 T3R, LanParty UT/DK/JR X58)
ICS9LPRS906CGLF (MSI P35 Platinum)
ICS9LPRS910BKL (MSI X38 Diamond)
ICS9LPRS914EKL (Gigabyte X38-DQ6 ,X38T-DQ6, GA-P45-DS3L,GA-EP43 DS3L)
ICS9LPRS916JGLF (ASUS P5K, P5QL Pro )
IICS9LPRS509HGLF (DFI Infinity P965-S, Biostar TP35D2-A7, Foxconn P35A, ECS P35T-A V1.0)
ICS9LPRS514EGLF (MSI P965 platinum, Foxconn 946GZ7MA-8K2SH)
ICS9LPRS552AGLF (ASUS P5K31-VM/P5B-E/P5B-Plus/P5B[Vanilla], GIGABYTE G33M-DS2R ) CS9LPRS918BKL(ASUS P5K/3 Deluxe, P5E, P5Q Deluxe, P5Q-E, P6T Deluxe)
RTM866-890 (Asrock 4CoreDual-VSTA)
ICS9LPR501HGLF (ABIT IB9,IP35)
[img]https://i.postimg.cc/XqK1RcyX/1322667.jpg
