tesorillo escribió:Kasios escribió:Tutoriales no hay en español (que yo sepa), pero esquemas, y fotos sueltas si. Es mas complicado hacer repros en NES que en SNES, a ver que tal me salen las del Castlevania y Castlevania 2
Y sabes de alguna pagina, donde mas o menos pueda empezar con una repro facililla? ya me contaras como te salen los castelvanias, yo quiero empezar con el zelda 1 que es el que me falta
La verda es q apenas se encuentra info, porque de master system tampco es que haya mucho

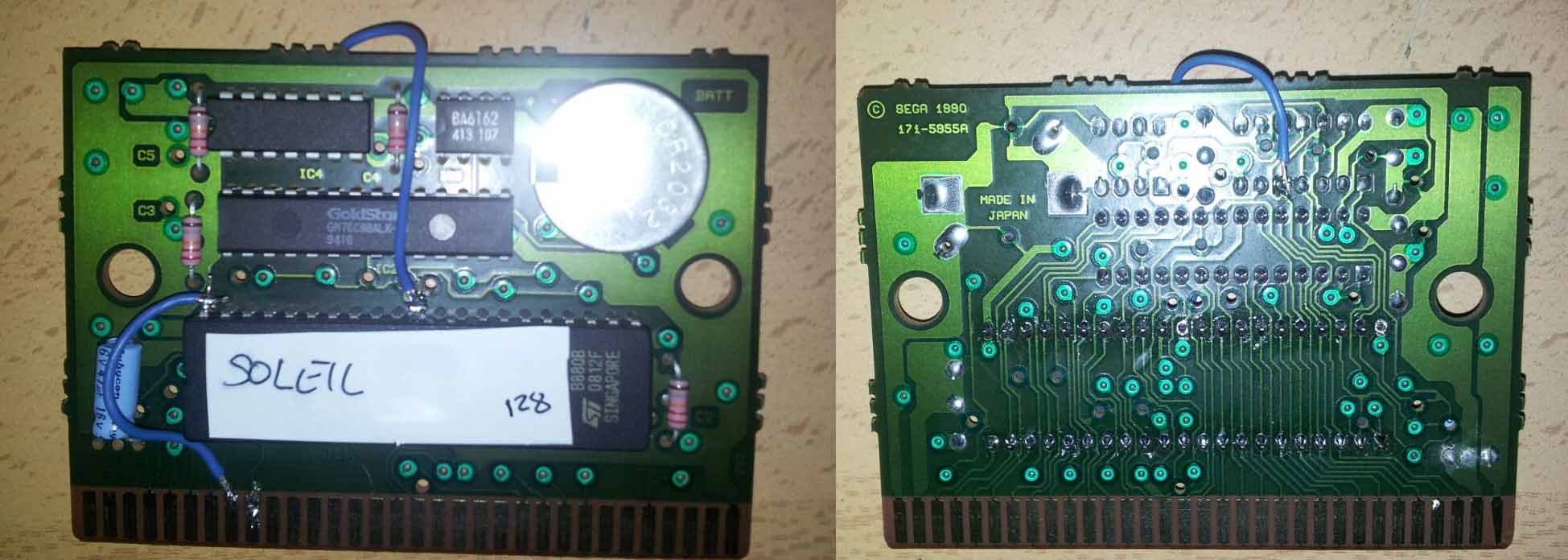

EDITO: Acabo de probar con otra ROM, igual resultado :'( alguien podria pasarme el bin que ha usado? o es que hay q cablearlo de alguna forma especial???
Para cableado tengo esto, espero que te sirva
Using EPROMs in place of NES Mask ROMS:
27CXXX series EPROMs,
27C64, 27C128, 27C256, 27C512, 27C010, 27C020, 27C040
NROM (mapper 0):
No modifications nessesary
CNROM (mapper 3):
No modifications nessesary
UNROM (mapper 2):
Bend up pins 1, 2, 24 and 31
Solder pin 2 to hole 22 (A16)
Solder pin 24 to GND (OE)
SNROM (mapper 1):
Bend up pins 1, 2, 24, 30 and 31 (or cut tracks 2, 24 and 30)
Solder pin 2 to hole 24 (A16)
Solder pin 24 to GND (OE)
Solder pin 30 to hole 1 (A17)
SNROM -> SVROM Conversion (mapper 1):
Bend up pins 1, 2, 24, 30, and 31 (or cut tracks 2, 24, 30 and 31)
Solder pin 2 to hole 24 (A16)
Solder pin 24 to GND (OE)
Solder pin 30 to hole 1
Cut track from MMC1 pin 11 to WRAM pin 20
Solder pin 31 to pin 11 of MMC1 chip (A18)
Solder pin 20 of WRAM to Ground (CE (E1) or CHR /A13)
SLROM (mapper 1):
PRG socket:
Bend up pins 1, 2, 24, 30 and 31 (or cut tracks)
Solder pin 2 to hole 24 (A16)
Solder pin 24 to GND (OE)
Solder pin 30 to hole 1 (A17)
CHR socket:
Bend up pins 1, 2, 22, 24, 30 and 31 (or cut tracks)
Solder pin 2 to hole 24 (A16)
Solder pin 22 to hole 31 (CE or CHR /A13)
Solder pin 24 to hole 2 (OE or CHR /RD)
TKROM & TSROM (mapper 4):
PRG socket:
Bend up pins 1, 2, 24, 30 and 31 (or cut tracks 2, 24, 30 and 31)
Solder pin 2 to hole 24 (A16)
Solder pin 24 to GND (OE)
Solder pin 30 to hole 1 (A17)
Solder pin 31 to hole 2 (A18)
CHR socket:
Bend up pins 1, 2, 22, 24, 30, 31 (or cut tracks 2, 22, 24 and 30)
Solder pin 2 to hole 24 (A16)
Solder pin 22 to hole 31 (CE or CHR /A13)
Solder pin 24 to hole 2 (OE or CHR /RD)
Solder pin 30 to hole 1 (A17)
TKROM -> TNROM conversion (mapper 4):
PRG socket:
Bend up pins 1, 2, 24, 30 and 31 (or cut tracks 2, 24, 30 and 31)
Solder pin 2 to hole 24 (A16)
Solder pin 24 to GND (OE)
Solder pin 30 to hole 1 (A17)
Solder pin 31 to hole 2 (A18)
CHR RAM conversion:
Seat the RAM chip 2 pins back (pin 1 of RAM is pin 3 of socket)
cut track to hole 3, 22, 24, 28 and 29
Solder pin 1 to hole 30 (+5V)
Solder pin 20 to hole 31 (CE or CHR /A13)
Solder pin 22 to hole 2 (OE or CHR /RD)
Solder pin 26 to hole 28 (+5V or RESET)
Solder pin 27 to NES pin 56 (CHR /WR), you will probably need to glue in the missing tab on the PC board that goes into the NES, I used a thin piece of metal and super glued it, then sanded it with fine sand paper
UNROM -> AOROM conversion (mapper 7):
Bend up pins 1, 2, 24, 30 and 31
remove '32 chip
cut track to pin 6 of '161
Solder pin 2 to pin 13 of '161 (A16)
Solder pin 18 to pin 6 of '161 (D4)
Solder pin 24 to GND (OE)
Solder pin 30 to pin 12 or '161 (A17)
Bridge gap between pins 10 and 11 where '32 was (A14)
Bridge gap between pins 3 and 13 where '32 was (A15)
remove solder gap for either V or H
Solder NES pin 22 (CIRAM A10) to pin 11 of '161
